Features introduced |
Parameter |
Applicable Products |
Video demo |
|
|
|
1. This type of machine is multi-functional, because it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressures and each oil system is designed separately. It is consistent, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.
3. Slow moving speed is available for alignment more safe and more accurate.
4. Molds can be precisely positioned. A 100% safety design for positioning is available to prevent molds from damage.
5. The speed to open close the mold is adjustable. It is very accurate and reliable.
|
|
Type |
Unit |
200T |
250Ton |
300Ton |
350Ton |
400Ton |
500Ton |
600Ton |
Clamping force |
ton |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
Stroke |
mm |
250 |
250 |
250 |
300 |
300 |
300 |
300 |
Max.mould Thickness |
mm |
150 |
150 |
150 |
250 |
250 |
300 |
300 |
Heating plate size |
mm |
上:503x508 |
600x600 |
600x600 |
700x700 |
750x750 |
850x850 |
900x900 |
|
|
下:546x560 |
642x600 |
642x600 |
750x750 |
800x800 |
900x900 |
950x950 |
Diameter of cylinder |
mm |
350 |
400 |
450 |
500 |
500 |
560 |
600 |
Horse power |
hp |
15 |
15 |
10x2 |
10x2 |
10x2 |
15x2 |
15x2 |
Type of mold opening |
|
Up/Down-In/Out-Rail-2RT |
Up/Down-In/Out-2RT |
Double shatf |
kw |
24 |
34 |
34 |
42 |
46 |
52 |
60 |
thermal electricity |
|
|
|
|
|
|
|
|
Vacuum |
kw |
3 |
3 |
3 |
3 |
3 |
4/5.5 |
4/5.5 |
Total power |
kw |
37 |
47 |
51 |
61 |
65 |
78 |
86 |
Gross weight |
ton |
9 |
11.5 |
13.5 |
17 |
18 |
22 |
25 |
Machine Size |
m |
3.2x2.3x2.4 |
3.4x2.6x2.55 |
3.4x2.6x2.6 |
3.5x2.8x3 |
3.6x2.9x3.2 |
4x3.1x3.3 |
4.3x3.2x3.4 |
|

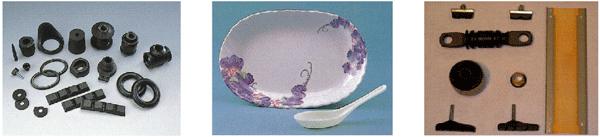

Roller, shoes, pharmaceutical stopper, automobile parts, anti-vibration products, pad, conductive products, electrical applications and so on.
|
|
|
|
 |
|
