VC-FTMO-3RT Home > Products > Vacuum molding machine
Features introduced Parameter Applicable Products Video demo

1.The 3RT sutpasses the traditional top opening mold that can be used for the triple or four mold plates with the design of opening mold and pushing out the mold in between.
2.The opening mold can be adjusted by the software with separate opening , separate pushing out the mold in between , contimuous opening and continuous pushing out the mold in between

Type Unit 200T 250Ton 300Ton 350Ton 400Ton 500Ton 600Ton
Clamping force ton 200 250 300 350 400 500 600
Stroke mm 250 250 250 300 300 300 300
Max.mould Thickness mm 150 150 150 250 250 300 300
Heating plate size mm 上：503x508 600x600 600x600 700x700 750x750 850x850 900x900
　 　 下：546x560 642x600 642x600 750x750 800x800 900x900 950x950
Diameter of cylinder mm 350 400 450 500 500 560 600
Horse power hp 15 15 10x2 10x2 10x2 15x2 15x2
Type of mold opening 　 Up/Down-In/Out-Rail-3RT Up/Down-In/Out-3RT
Double shatf  kw 24 34 34 42 46 52 60
thermal electricity 　 　 　 　 　 　 　 　
Vacuum kw 3 3 3 3 3 4/5.5 4/5.5
Total power kw 37 47 51 61 65 78 86
Gross weight ton 9 11.5 13.5 17 18 22 25
Machine Size m 3.2x2.3x2.4 3.4x2.6x2.55 3.4x2.6x2.6 3.5x2.8x3 3.6x2.9x3.2 4x3.1x3.3 4.3x3.2x3.4

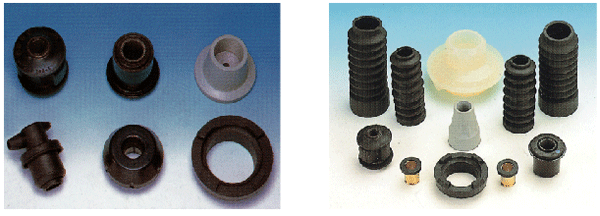

  Suitable for 3 for 4 layers mold.
