HS-RTMO Home > Products > Flat-panel molding machine
Features introduced Parameter Applicable Products Video demo
1. This type of machine is suitable to be used for double mold plates. It is capable of high speed production.
2. For the rail mold opening, the opening angle is up to 90 degree. It is very convenient to operate.
3. High force employs dual pressure and each oil system is designed separately. It is consistent, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.
4. Slow moving speed is available for alignment more safe and more accurate.

Type Unit 100Ton 150Ton 200Ton 250Ton 300Ton
Clamping force ton 100 150 200 250 300
Stroke mm 350 300 250 250 250
Heating plate size mm 450x460 460x460 494x508 642x600 642x650
Diameter of cylinder mm 250 300 350 400 450
Horse power hp 15 15 15 15 10x2
Type of mold opening 　 Up/Down-In/Out-Rail
Heating power kw 18 18 27 38 38
Total power kw 29 29 38 49 53
Gross weight ton 5.1 5.5 6 8.5 10.5
Machine Size m 2.8x1.9x2.1 2.8x2.1x2 3x2.3x2 3.3x2.5x2.2 3.4x2.6x2.2

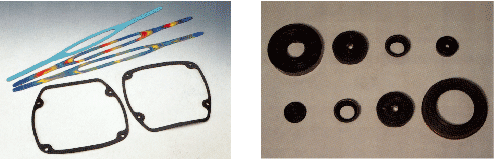

Medical applications, livelihood applications, automobile parts,industrial parts and so on.
