HS-FTMO-4RT Home > Products > Flat-panel molding machine

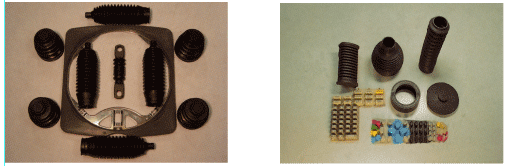

Features introduced Parameter Applicable Products Video demo
The 4RT surpasses the traditional top opening mold that can be used for taking out the final product when there are triple or four mold plates with the design of opening mold, pushing out the mold in between, loading the bottom mold, lowering the mold in between, and rising thimble to move the final production.

Type Unit 100Ton 150Ton 200Ton 250Ton 300Ton 　
Clamping force ton 100 150 200 250 300 　
Stroke mm 350 300 250 250 250 　
Heating plate size mm 450x460 460x460 494x508 642x600 642x650 　
Diameter of cylinder mm 250 300 350 400 450 　
Horse power hp 15 15 15 15 10x2 　
Type of mold opening 　 Up/Down-In/Out-Rail-4RT 　
Heating power kw 18 18 27 38 38 　
Total power kw 29 29 38 49 53 　
Gross weight ton 5.1 5.5 6 8.5 10.5 　
Machine Size m 2.8x1.9x2.1 2.8x2.1x2 3x2.3x2 3.3x2.5x2.2 3.4x2.6x2.2 　
Type Unit 350Ton 400Ton 500Ton 600Ton 800Ton 1000Ton
Clamping force ton 350 400 500 600 800 1000
Stroke mm 300 300 300 300 400 400
Heating plate size mm 750x750 800x800 900x900 950x950 1200x1200 1500x1500
Diameter of cylinder mm 500 500 560 600 700 800
Horse power hp 10x2 10x2 15x2 15x2 20 20
Type of mold opening 　 Up/Down-In/Out-4RT Up/Down-In/Out
Heating power kw 46 50 56 64 55 85
Total power kw 61 65 78 86 70 100
Gross weight ton 14 15 18 21 26 35
Machine Size m 3.5x2.8x2.4 3.6x2.9x2.6 4x3.1x2.7 4.3x3.2x2.8 3x4.3x3.1 3.6x5.2x3.5


Suitable for 4 for 5 layers mold.
